MQTT

Homecast publishes real-time device state to MQTT and accepts commands. Compatible with Home Assistant, Node-RED, and any MQTT client.

Connecting

Setting	Value
Host	mqtt.homecast.cloud
Port	8883 (TLS) or 1883
Username	(leave blank)
Password	Your API access token (hc_...)

Create an access token in Settings → API Access, or in the MQTT Browser → Connection Details.

Example

# Subscribe to all topics
mosquitto_sub -h mqtt.homecast.cloud -p 8883 \
  --cafile /etc/ssl/cert.pem \
  -u "" -P "hc_your_token_here" \
  -t "homecast/#" -v

# Turn off a light
mosquitto_pub -h mqtt.homecast.cloud -p 8883 \
  --cafile /etc/ssl/cert.pem \
  -u "" -P "hc_your_token_here" \
  -t "homecast/my-home-a1b2/living-room-c3d4/desk-lamp-e5f6/set" \
  -m '{"on": false}'

Topics

Follows the Zigbee2MQTT convention: the base topic is the device state, /set is for commands.

Device state

homecast/{home}/{room}/{accessory}

Retained JSON with all characteristics, sorted alphabetically:

{"brightness": 80, "color_temp": 200, "on": true}

Device commands

homecast/{home}/{room}/{accessory}/set

Publish a JSON object with the characteristics to change:

{"on": false}
{"brightness": 50, "color_temp": 300}

Availability

homecast/{home}/{room}/{accessory}/availability

Retained string: "online" or "offline".

Device info

homecast/{home}/{room}/{accessory}/info

Retained JSON describing what the accessory is, rather than its state. The state topic says an air conditioner has speed 100; this says that speed belongs to a heater_cooler service, that hvac_mode accepts 0, 1 and 2, and who made it:

{
  "category": "Other",
  "manufacturer": "Powrmatic",
  "model": "Default-Model",
  "keys": {
    "cool_target": {"service": "heater_cooler", "writable": true, "min": 16, "max": 31, "step": 1},
    "hvac_mode":   {"service": "heater_cooler", "writable": true, "min": 0, "max": 2, "step": 1, "valid": [0, 1, 2]},
    "speed":       {"service": "heater_cooler", "writable": true, "min": 0, "max": 100, "step": 1}
  }
}

Only keys the state topic publishes appear under keys. Any field may be missing — min, max, step and valid are there only when the accessory declares them.

Service groups

Groups control multiple devices at once (e.g., "All Kitchen Lights"):

homecast/{home}/{room}/{group}              # group state
homecast/{home}/{room}/{group}/set          # control all devices in group
homecast/{home}/{room}/{group}/members      # JSON array of member slugs

The default room

Apple Home keeps a default room that it doesn't list alongside the rooms you created, but accessories can sit in it. It publishes as default, slugged like any other room:

homecast/{home}/default-{hex}/{accessory}

Accessories with no room

A virtual accessory belongs to the home rather than to any part of it, so it has no room segment at all. Everything else about it is unchanged:

homecast/{home}/{accessory}                 # device state
homecast/{home}/{accessory}/set             # commands
homecast/{home}/{accessory}/availability    # online/offline

A group whose members are all roomless publishes the same way.

Scenes

homecast/{home}/scene/{scene}/execute

Publish any payload to trigger the scene.

Home status

homecast/{home}/status

Retained: "online" or "offline". Updated via MQTT Last Will and Testament.

Home Assistant auto-discovery

homeassistant/{component}/homecast_{id}/config

Retained JSON with HA discovery payload. Published automatically when MQTT is enabled. Devices appear in Home Assistant without manual configuration.

Virtual accessories are the exception: a Switch is discovered like any other switch, but the other types have no Home Assistant equivalent to be discovered as. Subscribe to their topics directly, or use the Home Assistant integration.

Slugs

Topic segments use the format {name}-{first 4 hex of UUID}:

• county-hall-2d10 (home)
• kitchen-dfee (room)
• default-1910 (the default room — named default rather than after itself, whose name Apple localizes, but slugged the same way)
• desk-lamp-e5f6 (accessory)
• kitchen-lights-182f (service group)

Slugs are stable — renaming a device in HomeKit doesn't change the slug.

Editions

Feature	Community	Cloud
Custom MQTT brokers	Connect Mac app to your broker	Store in DB, cloud bridge connects
Homecast Broker (mqtt.homecast.cloud)	Not available	Per-home toggle in Settings
MQTT Browser	At homecast.cloud/mqtt	Also at mqtt.homecast.cloud
HA auto-discovery	Published by Mac app	Published by cloud bridge
Service group support	Via Mac app	Via cloud bridge

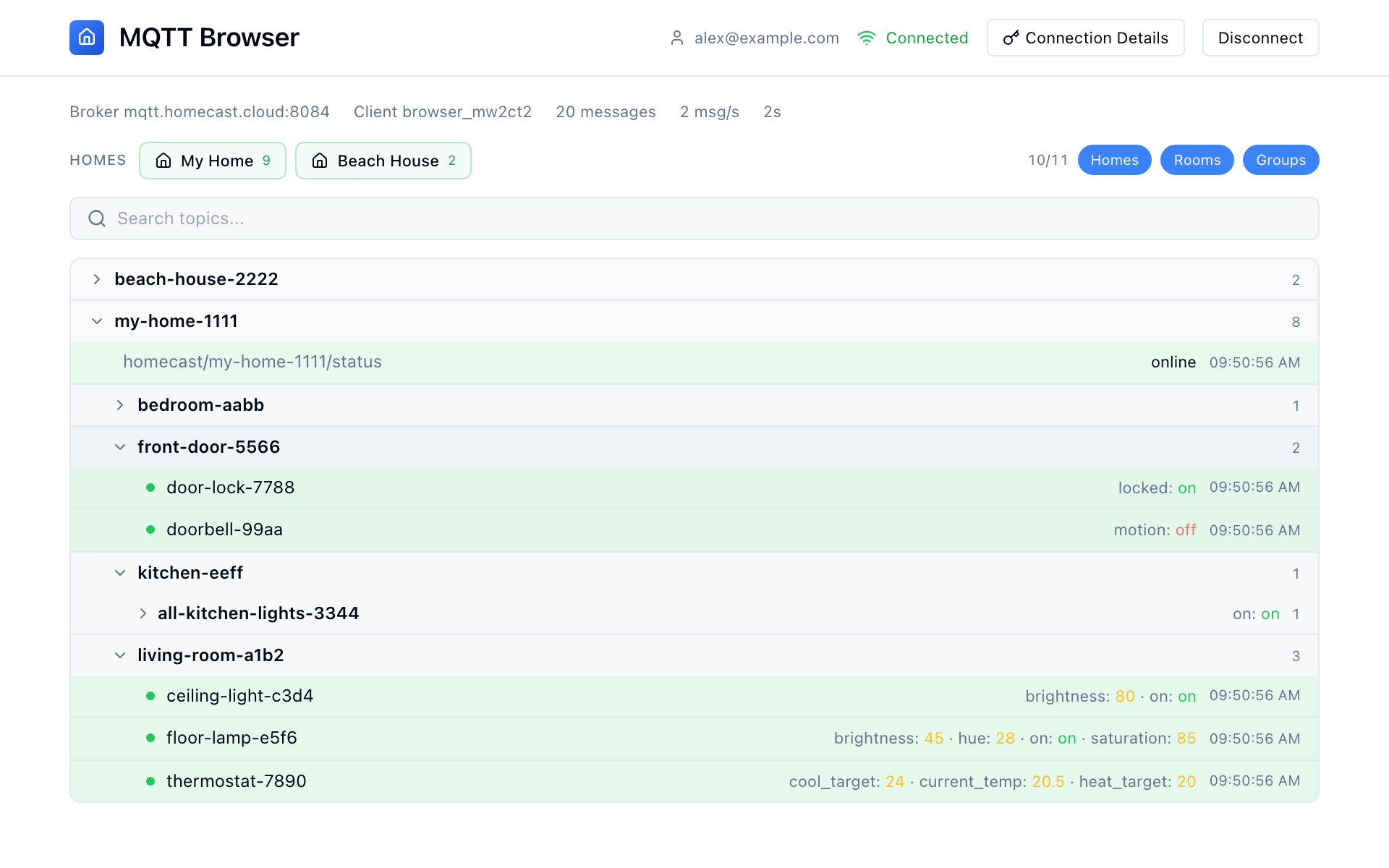

MQTT Browser

Browse live device state and publish commands at mqtt.homecast.cloud or homecast.cloud/mqtt.

Features:

• Auto-connects with your Homecast session
• Filter by home and room
• Visual controls: toggles for booleans, sliders for brightness/color
• Raw JSON editor for advanced use
• Publish history
• Service group support with member list
• Connection details dialog with access token management

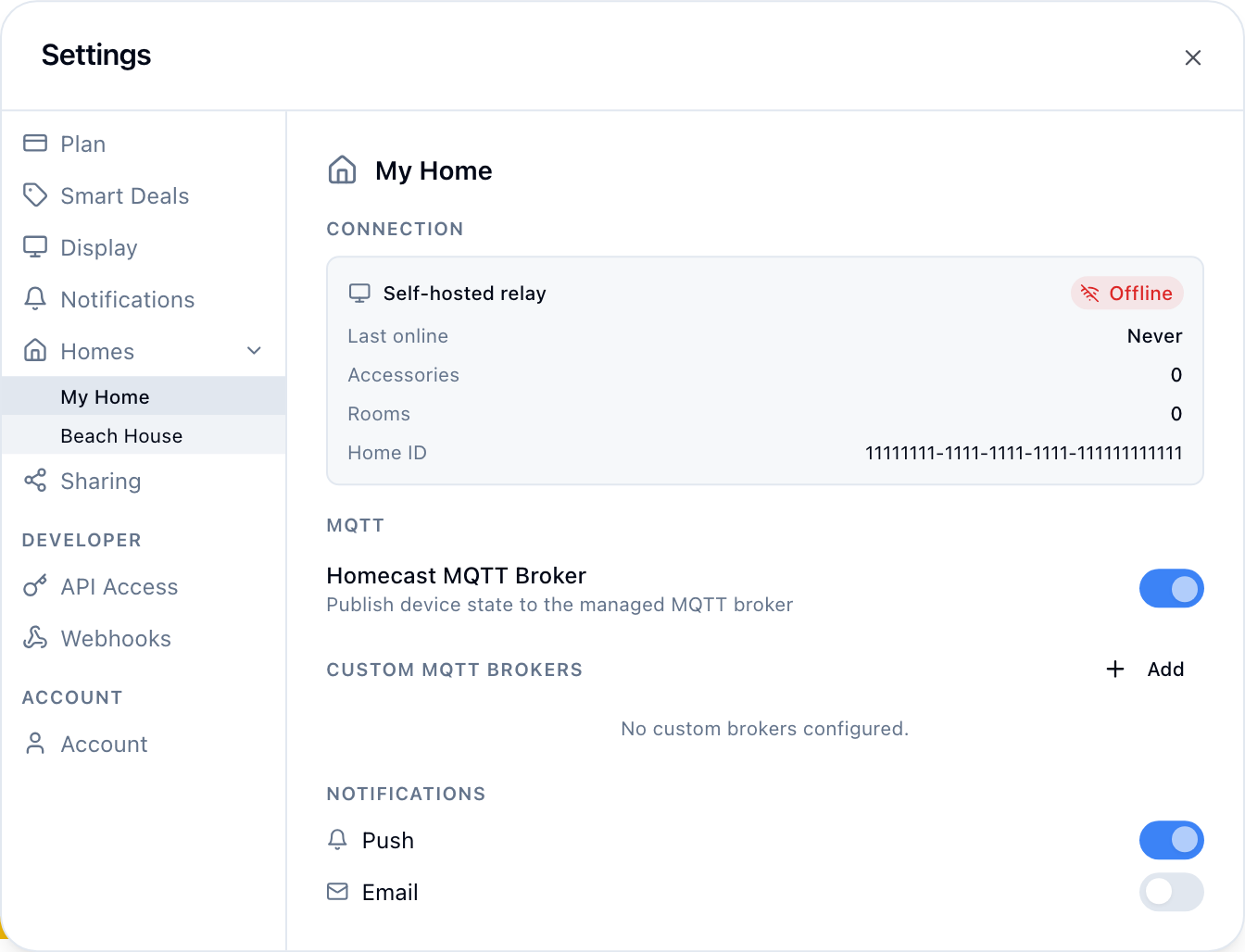

Enabling MQTT

1. Go to Settings → Account → enable Developer Mode
2. Go to Settings → Homes → click your home
3. Toggle Homecast Broker on
4. (Optional) Add custom brokers below

Characteristic names

MQTT uses simplified names for HomeKit characteristics:

MQTT name	HomeKit characteristic
on	Power state
brightness	Brightness (0–100)
color_temp	Color temperature (50–500)
hue	Hue (0–360)
saturation	Saturation (0–100)
current_temp	Current temperature
heat_target	Heating threshold
cool_target	Cooling threshold
position	Current position (blinds, 0–100)
target	Target position
locked	Lock state
lock_target	Lock target
motion	Motion detected
contact	Contact sensor state
speed	Fan rotation speed
volume	Speaker volume
mute	Mute state
battery	Battery level
active	Active state
alarm_state	Security system state
alarm_target	Security system target
hvac_mode	Heater/cooler target mode: 0 auto, 1 heat, 2 cool. /set also takes "auto", "heat", "cool"
hvac_state	Heater/cooler current state: 0 inactive, 1 idle, 2 heating, 3 cooling
swing_mode	Heater/cooler swing: 0 off, 1 on
target_temp	Thermostat target temperature
thermostat_mode	Thermostat target mode: 0 off, 1 heat, 2 cool, 3 auto
thermostat_state	Thermostat current state: 0 off, 1 heating, 2 cooling
relative_humidity	Current relative humidity
position_state	Covering motion: 0 closing, 1 opening, 2 stopped
obstruction	Obstruction detected
low_battery	Low battery status

An air conditioner is a heater/cooler, not a thermostat: HomeKit gives the two different mode numbering, which is why they publish under different names.

Virtual accessories

Virtual accessories publish and accept commands like any other device. They have no room, so they sit directly under the home (see Accessories with no room).

Each carries one key, and what writing to it means depends on the type:

Type	API type	MQTT key	Publishing to /set
Switch	input_boolean	on	true / false
Mode	input_select	mode	selects that option
Counter	counter	count	sets the count — it does not add to it
Number	input_number	number	sets the value
Text	input_text	text	sets the text
Date & time	input_datetime	datetime	sets it, same format the dashboard stores
Timer	timer	timer	"active" starts it; anything else cancels it

# Switch a mode
mosquitto_pub -t "homecast/my-home-a1b2/home-mode-80d9/set" -m '{"mode": "Away"}'

# Start a timer
mosquitto_pub -t "homecast/my-home-a1b2/porch-timer-2c12/set" -m '{"timer": "active"}'

Timers

A timer's state is idle, active or paused. On its own that only says whether it is running, so it publishes the countdown alongside:

Key	Meaning
timer_started_at	when the current run started
timer_ends_at	when it will run out
timer_duration_ms	how long it runs for
timer_finished_at	when it last ran out — stays until the next start

{"timer": "active", "timer_started_at": 1754563200000, "timer_ends_at": 1754563500000, "timer_duration_ms": 300000}

Times are absolute (epoch milliseconds) rather than a remaining span, because a retained message is read long after it was published — work out the remaining time from timer_ends_at at the moment you need it.

timer_finished_at is there because an idle timer is otherwise indistinguishable from one that has never run. Cancelling a timer does not set it: a cancelled timer never finished.
