Authentication

Homecast supports three authentication models. Choose based on your use case.

Model	Format	Use case	Lifetime
JWT	eyJ...	Web and mobile app sessions	7 days
Access Token	hc_...	Programmatic API scripts	Until revoked or expired
OAuth 2.1	Bearer token	Third-party integrations, MCP	1 hour (refreshable)

All three are sent the same way:

Authorization: Bearer <token>

JWT sessions

First-party sessions for the web and mobile apps. Obtained via login or signup GraphQL mutations.

Claims

Claim	Type	Description
sub	string	User ID (UUID)
email	string	User email address
iat	datetime	Issued at
exp	datetime	Expiration (issued + 7 days)
home_permissions	object | null	Home access scope (only for OAuth-issued tokens)

Configuration

Setting	Value
Algorithm	HS256
Expiry	168 hours (7 days)

Login

mutation {
  login(email: "user@example.com", password: "password") {
    success
    token
    user {
      id
      email
      name
    }
    error
  }
}

Response:

{
  "data": {
    "login": {
      "success": true,
      "token": "eyJhbGciOiJIUzI1NiIs...",
      "user": { "id": "uuid", "email": "user@example.com", "name": "Alice" },
      "error": null
    }
  }
}

Signup

mutation {
  signup(email: "user@example.com", password: "password", name: "Alice") {
    success
    token
    user { id email name }
    error
  }
}

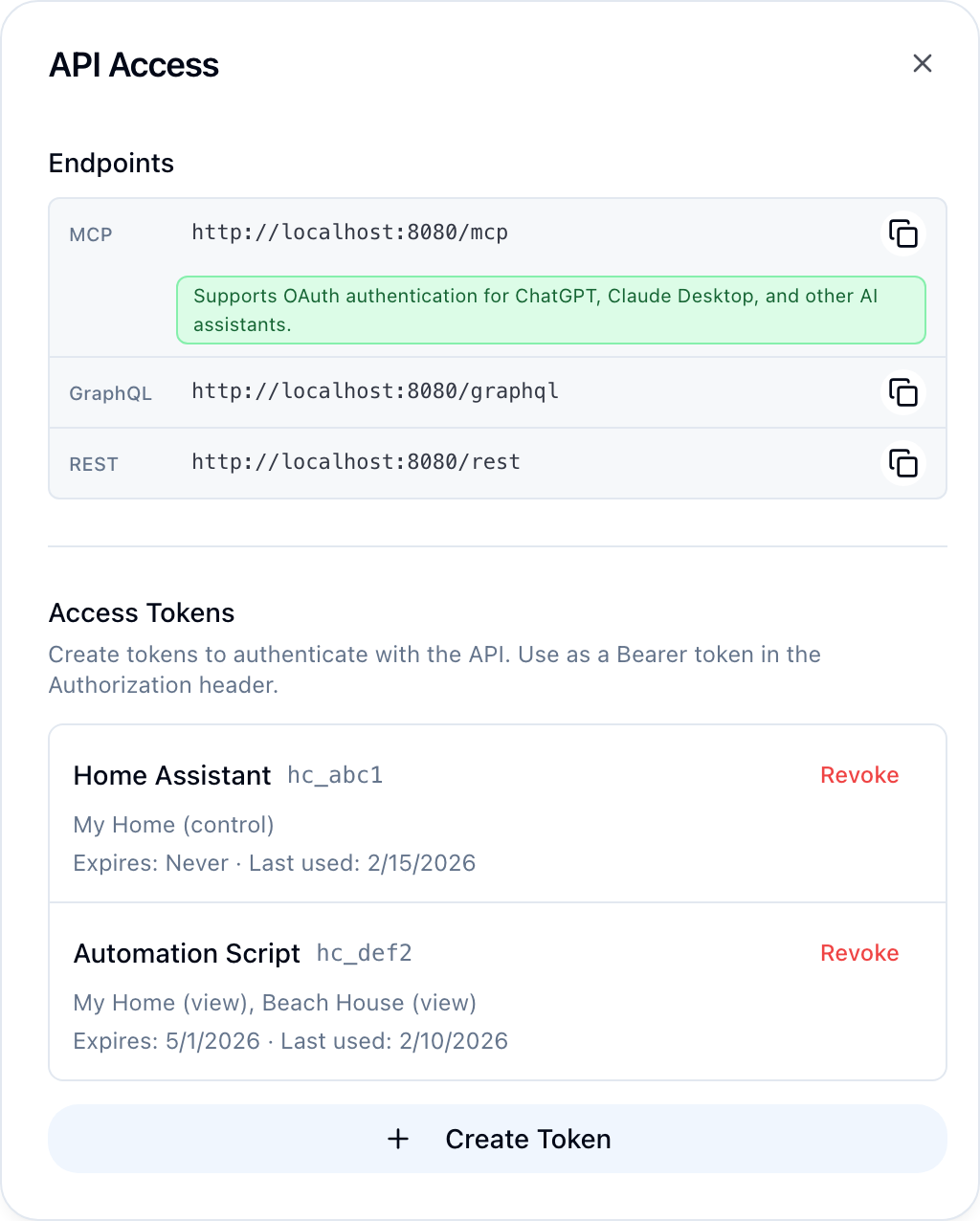

Access tokens

Programmatic tokens for scripts and automations. Prefixed with hc_.

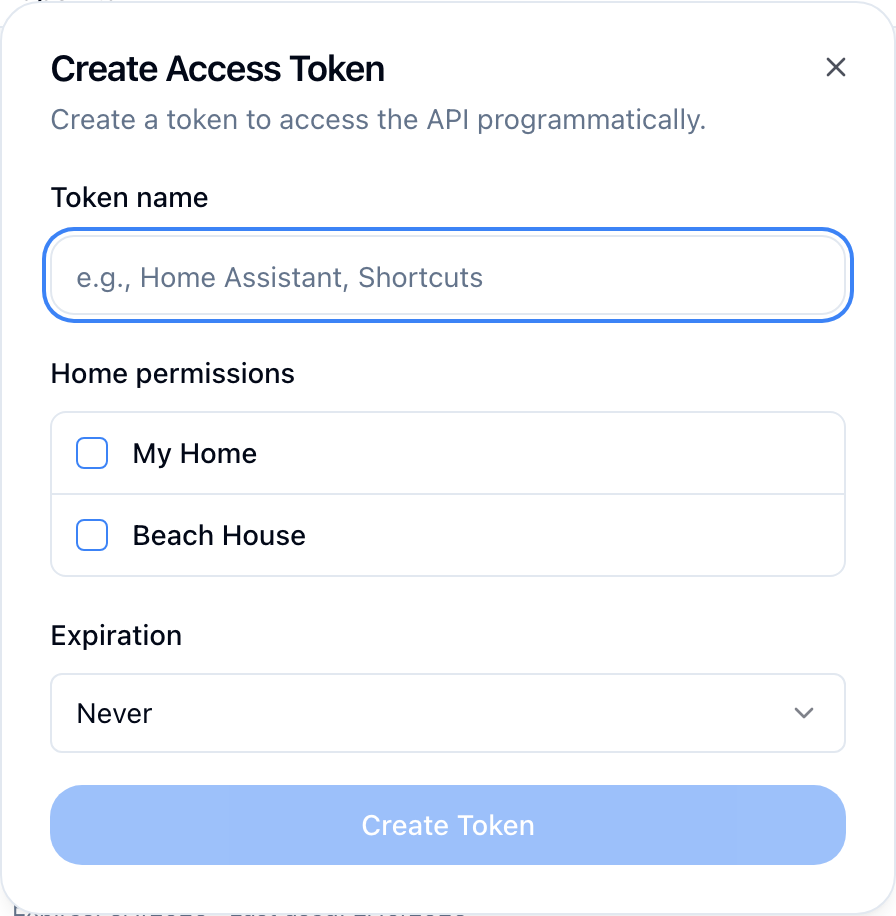

Create a token

mutation {
  createAccessToken(
    name: "My Script"
    homePermissions: "{\"home-uuid\": \"control\"}"
  ) {
    success
    token
    accessToken {
      id
      name
      tokenPrefix
    }
    error
  }
}

The full token value (starting with hc_) is only returned on creation. Store it immediately.

Home permissions

The homePermissions field is a JSON string mapping home UUIDs to access levels:

{
  "550e8400-e29b-41d4-a716-446655440000": "control",
  "6ba7b810-9dad-11d1-80b4-00c04fd430c8": "view"
}

Level	Can read state	Can control devices
control	Yes	Yes
view	Yes	No

If homePermissions is null or omitted, the token has full access to all homes.

Token properties

Property	Description
id	Token UUID
name	User-defined label
tokenPrefix	First characters of token (for identification)
lastUsedAt	Last time the token was used
expiresAt	Expiration date (null = never expires)
revokedAt	Revocation date (null = active)
createdAt	Creation timestamp

List and revoke

# List all tokens
{ accessTokens { id name tokenPrefix lastUsedAt expiresAt createdAt } }

# Revoke a token
mutation { revokeAccessToken(tokenId: "token-uuid") { success error } }

OAuth 2.1

Full OAuth 2.1 with PKCE for third-party integrations and MCP clients.

Discovery

Endpoint	Purpose
GET /.well-known/oauth-authorization-server	Server metadata (RFC 8414)
GET /.well-known/openid-configuration	OpenID Connect Discovery
GET /.well-known/oauth-protected-resource	Resource metadata (RFC 8707)

Server metadata response:

{
  "issuer": "https://api.homecast.cloud",
  "authorization_endpoint": "https://api.homecast.cloud/oauth/authorize",
  "token_endpoint": "https://api.homecast.cloud/oauth/token",
  "registration_endpoint": "https://api.homecast.cloud/oauth/register",
  "scopes_supported": ["mcp:read", "mcp:write", "mcp:admin"],
  "response_types_supported": ["code"],
  "grant_types_supported": ["authorization_code", "refresh_token"],
  "code_challenge_methods_supported": ["S256"],
  "token_endpoint_auth_methods_supported": ["none", "client_secret_post"]
}

Scopes

Scope	Description
mcp:read	Read device state
mcp:write	Read and control devices
mcp:admin	Full access including management

Flow

1. Dynamic client registration

POST /oauth/register
Content-Type: application/json

{
  "redirect_uris": ["https://your-app.com/callback"],
  "client_name": "My Integration",
  "grant_types": ["authorization_code", "refresh_token"],
  "response_types": ["code"],
  "token_endpoint_auth_method": "none"
}

Response:

{
  "client_id": "generated-uuid",
  "client_secret": "generated-secret",
  "client_id_issued_at": 1708099200,
  "client_secret_expires_at": 0,
  "redirect_uris": ["https://your-app.com/callback"],
  "client_name": "My Integration",
  "grant_types": ["authorization_code", "refresh_token"],
  "response_types": ["code"],
  "token_endpoint_auth_method": "none"
}

2. Authorization request (with PKCE)

GET /oauth/authorize?
  client_id={client_id}&
  redirect_uri=https://your-app.com/callback&
  response_type=code&
  code_challenge={challenge}&
  code_challenge_method=S256&
  scope=mcp:write&
  state={random_state}

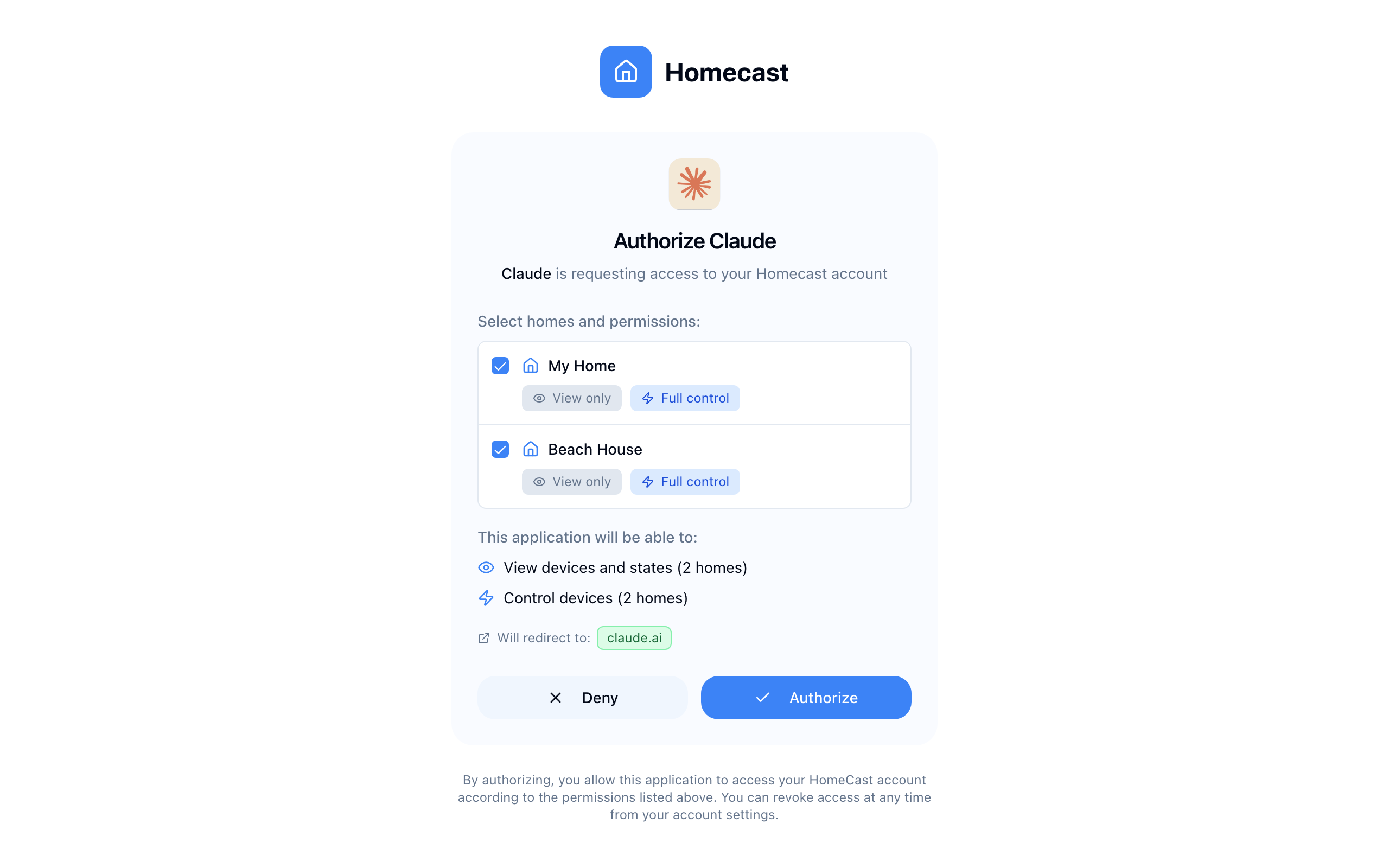

The user logs in, selects which homes to grant access to, and approves. Homecast redirects back:

https://your-app.com/callback?code={auth_code}&iss=https://api.homecast.cloud&state={random_state}

3. Token exchange

POST /oauth/token
Content-Type: application/x-www-form-urlencoded

grant_type=authorization_code&
code={auth_code}&
redirect_uri=https://your-app.com/callback&
code_verifier={verifier}

Response:

{
  "access_token": "eyJ...",
  "token_type": "Bearer",
  "expires_in": 3600,
  "refresh_token": "refresh_token_value",
  "scope": "mcp:write"
}

4. Refresh

POST /oauth/token
Content-Type: application/x-www-form-urlencoded

grant_type=refresh_token&
refresh_token={refresh_token}

Returns a new access token and a rotated refresh token.

Token lifetimes

Token	Lifetime
Authorization code	10 minutes
Access token	1 hour
Refresh token	30 days

Refresh tokens use rotation — each refresh returns a new refresh token and invalidates the old one.

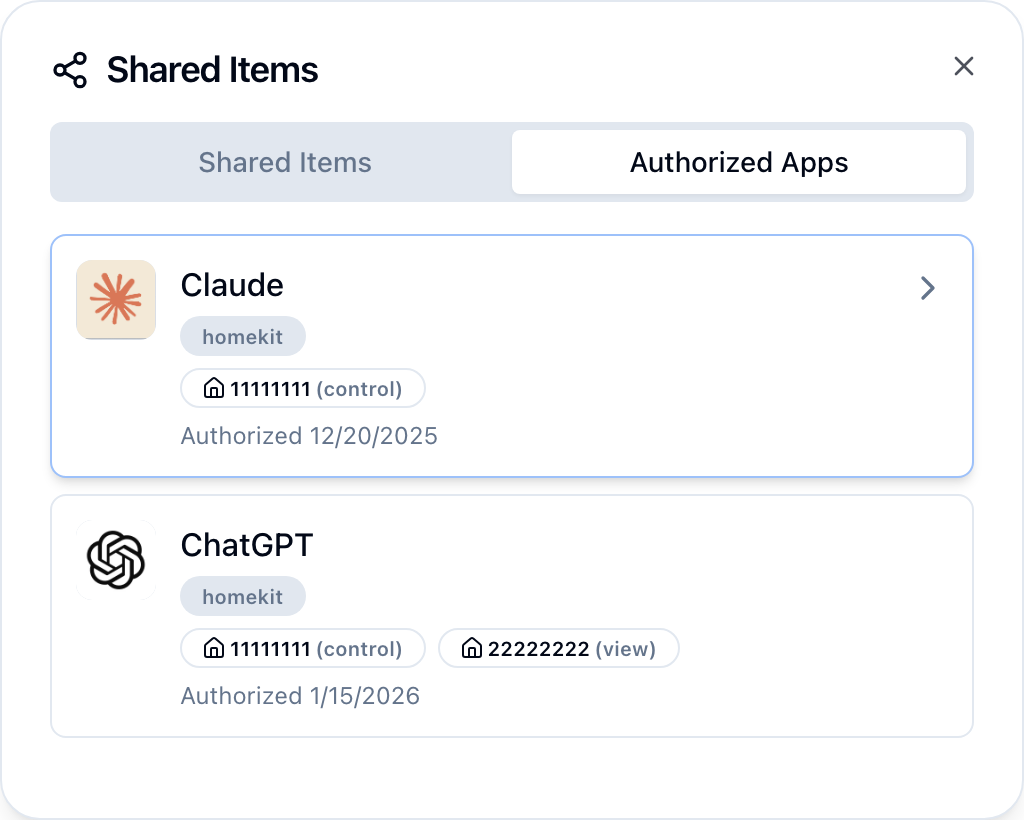

Managing authorized apps

# List apps with OAuth access
{ authorizedApps { clientId clientName scope createdAt } }

# Revoke an app's access
mutation { revokeAuthorizedApp(clientId: "client-uuid") { success error } }

Error responses

Status	Body	Meaning
401	{"error": "invalid_token"}	Token is expired, revoked, or malformed
403	{"error": "insufficient_permissions"}	Token doesn't have access to the requested home or action
401	{"error": "invalid_client"}	OAuth client credentials are invalid
400	{"error": "invalid_grant"}	Authorization code or refresh token is invalid/expired
